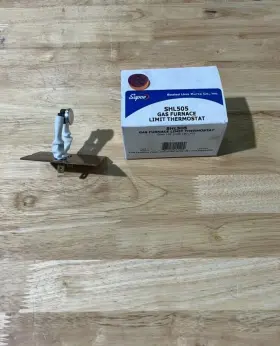

SUPCO SHL505 Gas Furnace Limit Thermostat

( Brand: Supco ), ( Manufacturer Part Number: SHL505 ), ( Part Type: Furnace Thermostat )

Review SUPCO Gas Furnace Limit Thermostat

The SUPCO SHL505 Gas Furnace Limit Thermostat is a crucial component of your home heating system that ensures safe and efficient performance of your gas furnace. This limit thermostat is designed to protect your furnace from overheating, preventing potential fires or damage to the unit.

The SHL505 limit thermostat is a factory-installed safety device that monitors the temperature of the furnace's heat exchanger. It is calibrated to activate when the temperature reached by the heat exchanger goes beyond the safe limit. When this happens, the limit thermostat shuts off the furnace's gas valve to prevent further heating and potential danger.

This thermal switch is designed with a bimetallic element at its core. When the temperature rises, this element bends, triggering an electrical contact that shifts to close the gas valve. The element returns to its original position once the temperature falls below the set limit, allowing the gas valve to re-open and the furnace to continue heating.

The SUPCO SHL505 Gas Furnace Limit Thermostat is a straightforward device that requires minimal maintenance. It is designed to last for several years, but may need replacement if it fails to shut off the gas valve when needed or if it persistently trips the limit switch, indicating an underlying issue with your furnace that may require professional attention.

Replacing this limit thermostat is a straightforward process that can be done by a do-it-yourself homeowner with basic tools and some knowledge of furnace component replacement. The replacement procedure involves removing a few screws to access the limit thermostat wiring harness, disconnecting the old thermostat, and attaching the new one in its place before reconnecting the wiring.

The SUPCO SHL505 Gas Furnace Limit Thermostat is an essential safety device that you can trust to help keep your home warm while providing the necessary protection against potential overheating hazards. With its robust design, efficient performance, and ease of replacement, it is a reliable investment for any gas furnace system.

Supco SHL505 Gas Furnace Limit Thermostat: Pros and Cons

The Supco SHL505 is a limit thermostat designed for use with gas furnaces. A limit thermostat is an essential safety component that regulates the temperature of the furnace by cutting off the gas supply when the temperature gets too high. Here are some potential advantages and disadvantages of using the Supco SHL505 gas furnace limit thermostat.

1. Safety: The primary benefit of using a limit thermostat like the Supco SHL505 is safety. It is designed to prevent the furnace from overheating, which could lead to dangerous situations like fuel gas leaks or even fires.

2. Easy to install: The Supco SHL505 is a relatively simple component to install. It typically requires only basic wiring skills and can usually be installed in under an hour, making it an economical option.

3. Durable construction: The Supco SHL505 features a heavy-duty design with a ceramic element that ensures long-lasting performance. It is also temperature-compensated, meaning it can adjust for temperature fluctuations, further increasing its lifespan.

1. Limited functionality: A limit thermostat like the Supco SHL505 has limited functionality compared to programmable thermostats. It is only designed to control the temperature limit of the furnace, making it less convenient for controlling the temperature of the entire house.

2. No display: The Supco SHL505 does not feature a display, making it impossible to see the current temperature or other crucial diagnostic information.

3. May require a replacement sensor: The element inside the limit thermostat may wear out over time and may need to be replaced to maintain the proper functioning of the device.

The Supco SHL505 Gas Furnace Limit Thermostat is a critical safety component for any gas furnace system. Its easy installation, durable construction, and temperature compensation features make it a reliable option. However, its limited functionality and lack of a display may be drawbacks for some users. Ultimately, the Supco SHL505 is an essential safety device that prioritizes reliability and affordability over additional features.

If safety is your primary concern for your gas furnace, the Supco SHL505 Gas Furnace Limit Thermostat is a solid recommendation. Its durable construction and easy installation offer peace of mind, making it a valuable addition to your home's HVAC system. If you want more advanced functionality, like temperature control and display features, you may want to consider upgrading to a programmable thermostat instead. Nonetheless, for those looking for an affordable yet effective safety device, the Supco SHL505 is an excellent option.

Details:

Gas furnace limit thermostat open 140 close 100 thermostat.

part #: shl505 prices

• $18.98-$39.66

specifications thermoditto:

• brand: Supco
• mpn: Shl505
• part type: Furnace Thermostat

offer thermoditto:

• availability: In Stock
• started: November 16, 2024
• quantity: 2
• best offers: True
• sold: 0
• options: Ship-to-home

shipping thermoditto:

• service: UPS Ground
• cost: $15.71
• type: Calculated
• class: Standard
• transit: 5-13 Days
• carrier: UPS

returns thermoditto:

• policy: No Returns

general thermoditto:

• Heating, Cooling Air > Thermostats > Non-programmable Thermostats
• condition: New

payments thermoditto:

• wallet: Apple-pay
• credit card: Visa
• other

seller thermoditto:

• rating: 100.0%
• city: Columbia, Kentucky
• # reviews: 306
